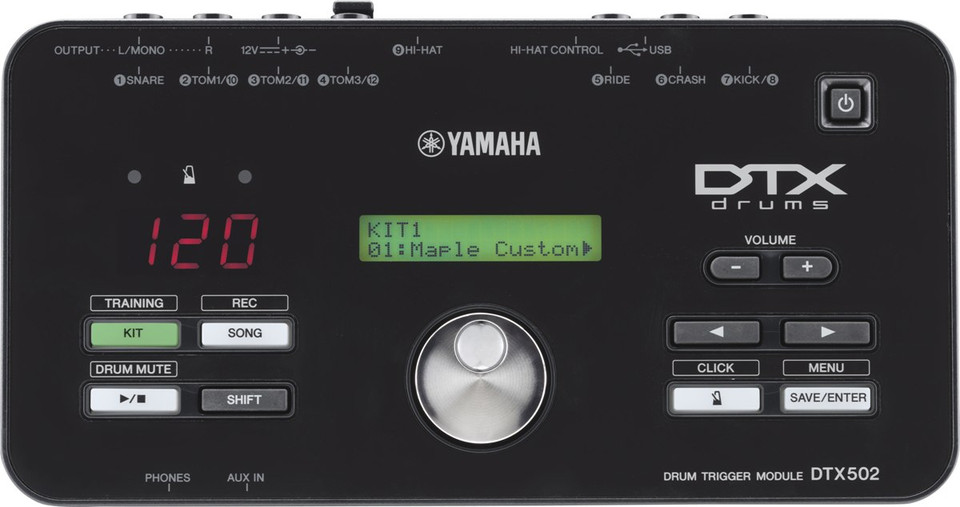

Yamaha DTX502 Sound Module
Using proprietary laser technology to analyze drum strokes, Yamaha precisely tuned the trigger settings on the DTX502 series resulting in a more natural feeling with laser accuracy.
You also get advanced features from higher end Yamaha models like cymbal muting, natural cymbal swells, and smoother snare drumrolls so the kits respond to every nuance of your playing.
Specs
| Trigger Module | DTX502 |
|---|
| Rack System | RS502 |
|---|
| Pad Set | DTP522 |
|---|
Size/Weight (Trigger Module)
| Dimensions | Width | 251 mm |
|---|
| Height | 130 mm |
|---|
| Depth | 48 mm |
|---|
| Weight | Weight | 610 g |
|---|
Tone generator
| Maximum Polyphony | 32 notes |
|---|
| Voices | Drum and percussion: 691,Melodies: 128 |
|---|
| Effects | Reverb: 9, Master EQ: 2 bands |
|---|
| Drum kits | Preset: 50 User: 50 (Total memory capacity of 1MB.) |
|---|
Sequencer
| Note Capacity | Approx. 104,000 Notes (Total memory capacity of 1MB.) |
|---|
| Note Resolution | 96 ppq (parts per quarter note) |
|---|
| Song recording type | Real-time replace |
|---|
| Song tracks | 1 track |
|---|
| Songs | Demo: 1, Practice: 37, Pad: 22, User: 40 |
|---|
| Sequence formats | Proprietary, SMF format 0/1 |
|---|
Click
| Tempo | 30 to 300 BPM, Tap Tempo supported. |
|---|
| Beat | 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16 |
|---|
| Timing | Accent, Quarter note, Eighth note, Sixteenth note, Triplet |
|---|
| Training Functions | Groove Check, Rhythm Gate, Measure Break, Tempo Up/Down, Change Up, Pad Gate, Part Mute, Fast Blast |
|---|
Other
| Connectors | OUTPUT [L/MONO] (Standard mono phone), OUTPUT [R] (Standard mono phone), Trigger inputs 1, 5, 6, 9 (Standard stereo phone, L: Trigger, R: Rim switch), Trigger inputs 2, 3, 4, 7 (Standard stereo phone, L: Trigger, R: Trigger), HI-HAT CONTROL (Standard stereo phone), AUX IN (Stereo Mini), PHONES (Standard stereo phone), USB TO HOST |
|---|
| Accessories | Power adaptor (PA-130), Module holder, Module holder fastening screws x2, Owner's Manual |
|---|
Audio Import
| Samples | 20 waves (maximum) |
|---|
| Sample Data Bits | 16 bits |
|---|
| Sampling Time * Mono/Stereo | 44.1kHz: 12 sec (mono) |
|---|
| Sample formats | WAV, AIFF |
|---|
